Sprockets: Stock & Alternative Design Types

Standard Stock Types

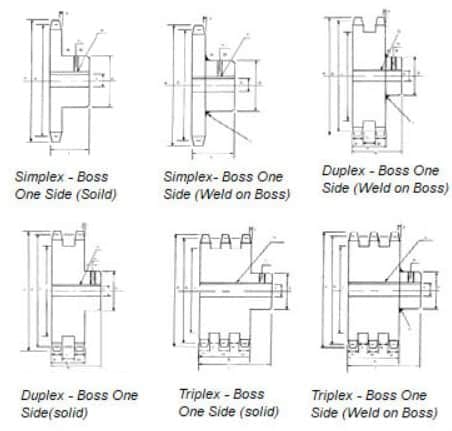

This is the Standard Stock Design Types for British & American Standard Simplex, Duplex & Triplex Chains –

std stock types

Alternative Stock Types

Beside the Standard Stock Design types the company can acheive many other types on quick lead times through the use of stock plate wheels or by modification of a stock product. Below are a few examples, others are available upon request.

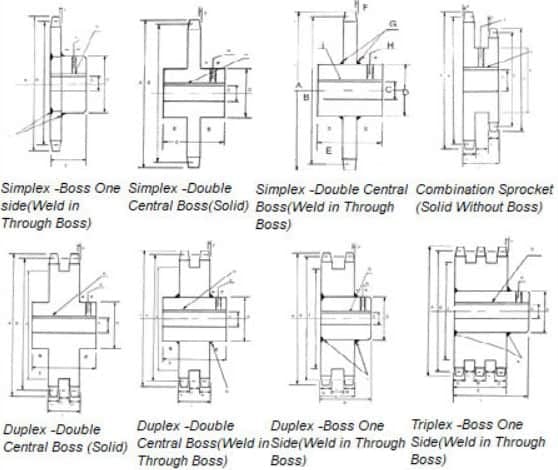

alternative design types

Note: Please be advised that stock pilot bore range of sprockets are available off the shelf with only a Plain nominal Bore. The diagrams drawn here are for illustration purposes only.

Level 1 – A Standard Stock Product off the shelf.

Level 2 – A Standard Stock Product modified or Finished machine to suit your requirements.

Level 3 – A Quick & Inexpensive Manufacturing Service- for that 1 off or small volume Special requirement, or for a prototype, or to a customers own drawing requirement.

Level 4 – A Competitive Volume Repeat Manufacturing Service to a customer’s own specification.

So regardless of what your requirement maybe, the company is confident it can service it!

The Company offers four main levels of service
